CYT1003AEG 單通道高壓線性恒流LED驅動芯片PWM調光功能

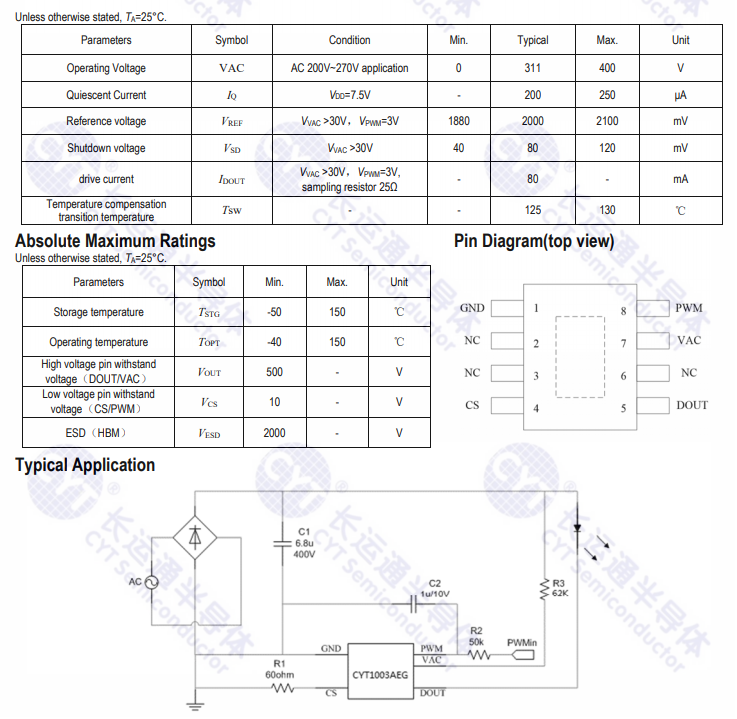

CYT1003AEG is a single-channel high-voltage linear constant current LED drive chip with dimming function. It adopts linear constant current technology to set the maximum driving current of LED string through external resistor. The output drive current can be adjusted by external an input PWM pin voltage. The PWM waveform can be converted to a dimming voltage by a simple filter circuit.
CYT1003AEG can realize the LED light string fully tumed off. When the PWM port input is connected to GND, the CYT1003AEG completely turns off the internal LDNMOS.and the current on the LED string is zero.
characteristic
Output constant current setting is 5~80mA.
The precision deviation of constant current between chips is less than +/-4%
PWM dimming interface
Dimming depth is 1%~100%
With overheating protection function.
Support high PF value or no stroboscopic application, no EMI problem, simple circuit and low cost of power supply system.
ESOP8 package
application area
LED fluorescent tubes T5/T8 and other specifications.
LED bulb lamp, downlight
LED ceiling lamp, projection lamp
